Single-ended open jaw slogging Spanner(DIN-133)

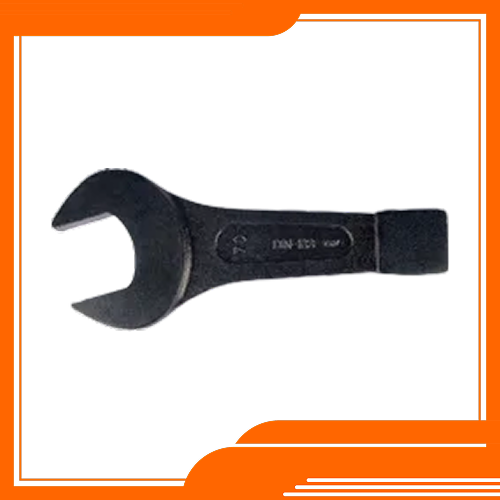

A-115 Single-Ended open jaw slogging Spanner(DIN-133)
Features:
- Drop Forged made from Chrome Vanadium steel 31 CrV 3
- Chrome Plated/ Zinc plated/ Black Finish
- Especially for Heavy Duty Jobs
- Generally Conforming to IS: 4508
| MM | WW | Length MM | Weight Kg. | Packing Master Cartons |
| 24 | 160 | 0.310 | 80 | |
| 27 | 180 | 0.415 | 60 | |
| 30 | 190 | 0.530 | 40 | |
| 32 | 3/4 | 196 | 0.615 | 36 |
| 33 | 196 | 0.615 | 36 | |
| 34 | 200 | 0.687 | 30 | |
| 35 | 200 | 0.687 | 30 | |
| 36 | 7/8 | 210 | 0.720 | 30 |
| 41 | 1 | 225 | 0.900 | 24 |
| 42 | 230 | 1.090 | 20 | |
| 46 | 1.1/8 | 251 | 1.420 | 16 |
| 50 | 1.1/4 | 275 | 1.600 | 12 |
| 55 | 1.3/8 | 304 | 2.429 | 10 |
| 60 | 1.1/2 | 320 | 2.800 | 8 |
| 65 | 1.5/8 | 340 | 3.250 | 6 |
| 70 | 1.3/4 | 365 | 4.000 | 6 |
| 75 | 1.7/8 | 378 | 5.073 | 4 |
| 80 | 2 | 400 | 7.000 | 4 |
| 85 | 400 | 6.800 | 4 | |
| 90 | 445 | 9.600 | 2 | |
| 95 | 445 | 9.400 | 2 | |
| 100 | 485 | 11.020 | 2 | |
| 105 | 2.3/4 | 485 | 11.000 | 2 |
| 110 | 3 | 500 | 12.700 | 2 |
