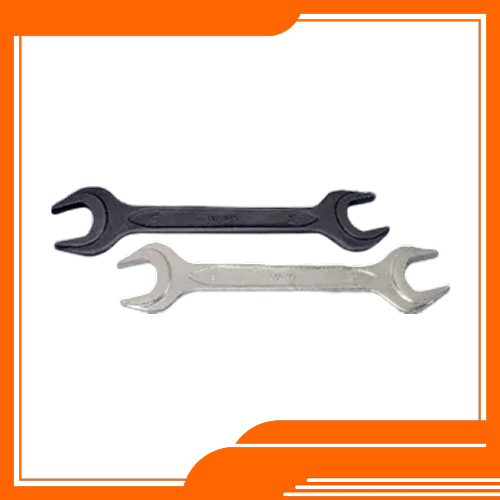

A-114 Double Open End Spanner (Din 895/ROCT 2839)

Looking for pricing, minimum order quantity, or delivery timelines? Share your requirement with us and our team will get back to you with complete product details and the best possible quote.

Product Description

Double Open End Spanner(Din 895/ROCT 2839)

A-114 Double Open End Spanner(Din 895/ROCT 2839)

Features:

Made of Carbon Steel / 31CrV3 with thickness reinforcement to withstand high Tightening Torques
Hardened & Tempered
Confirming to DIN 895 Standard
Chrome Plated/ Zinc plated/Black Phosphated Finish

MM	WW	Length MM	Weight Kg.	Packing Master Cartons
5.5 x 07		96	0.014	1500
06 x 07		96	0.015	1500
07 x 08		107	0.016	1500
08 x 09		110	0.020	1000
08 x 10		115	0.023	1000
09 x 11		118	0.023	1000
10 x 11		118	0.025	800
10 x 12		121	0.032	700
10 x 13		122	0.032	700
11 x 13		133	0.040	500
12 x 13		142	0.044	500
12 x 14		142	0.046	500
13 x 14		140	0.046	500
13 x 15		145	0.055	500
13 x 17		155	0.071	400
14 x 15		145	0.060	300
14 x 17		155	0.072	400
16 x 17		155	0.071	300
16 x 18		165	0.077	300
17 x 19		170	0.102	300
17 x 22		185	0.139	200
18 x 19		170	0.108	150
19 x 22		198	0.143	120
19 x 24		207	0.179	120
20 x 22		198	0.157	150
21 x 23		218	0.203	100
22 x 24		218	0.186	120
24 x 26		240	0.255	80
24 x 27		240	0.255	80
24 x 30		265	0.343	60
25 x 28		240	0.253	80
27 x 30		270	0.330	60
27 x 32		272	0.385	60
30 x 32		275	0.396	60
30 x 34		285	0.469	50
30 x 36		300	0.582	40
32 x 36	3/4 x 7/8	300	0.582	40
34 x 38		300	0.547	40
36 x 41	7/8 x 1	340	0.780	30
41 x 46	1 x 1 1/8	385	1.034	20
46 x 50	1 1/8 x 1 1/4, 1 1/8 x 1 3/8	420	1.245	16
50 x 55	1 1/4 x 1 3/8	465	1.750	12
55 x 60	1 3/8 x 1 1/2	500	1.860	12
65 x70		580	2.600	8
75 x 80		662	4.100	8
