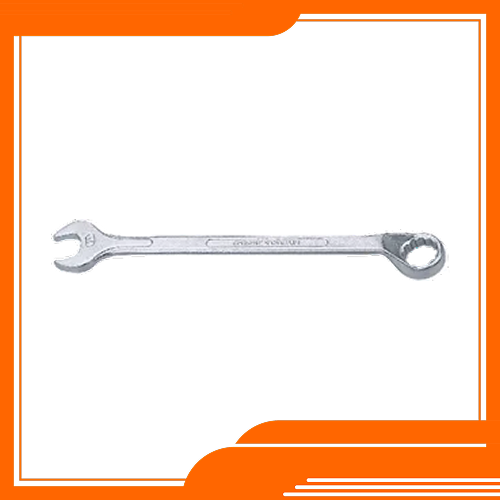

A-109 Combination Spanner (Din 3113 From B, Iso 3318)

Looking for pricing, minimum order quantity, or delivery timelines? Share your requirement with us and our team will get back to you with complete product details and the best possible quote.

Product Description

Combination Spanner (Din 3113 From B, Iso 3318)

A-109 Combination Spanner (Din 3113 From B, Iso 3318)

Features:

With Deep Offset Ring
Drop Forged Made from Carbon Steel/ Chrome/ Vanadium Steel 31 CrV 3
Hardened & Tempered, Matt Finish/ Polished Head
Chrome Plated/ Zinc Plated/ Satin Finish

MM	Length MM	Weight Kg.	Packing Master Cartons
6	100	0.020	1000
7	112	0.030	1000
8	125	0.030	700
9	138	0.035	600
10	148	0.045	500
11	158	0.050	400
12	168	0.065	300
13	185	0.085	250
14	198	0.095	250
15	210	0.105	200
16	220	0.125	200
17	232	0.160	150
18	245	0.180	120
19	258	0.205	100
20	270	0.245	80
21	280	0.255	80
22	292	0.310	80
23	305	0.325	60
24	318	0.370	60
25	328	0.420	50
26	340	0.450	50
27	352	0.510	40
28	370	0.570	40
29	370	0.570	40
30	390	0.675	30
32	412	0.800	30
